BS 6346 PVC Insulated Cables, 600/1000V

Applications :

  • These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

Construction :

  • Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores: Brown, Blue
    3 Cores: Brown, Black, Grey
    4 Cores: Blue, Brown, Black, Grey
    5 Cores: Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores: White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/ Bedding PVC (Polyvinyl Chloride)
    Armour Single Core: AWA (Aluminum Wire Armour)
    Multi Core: SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

Technical Information :

  • Voltage rating 600/1000V
    Temperature rating -20°C to + 60°C
    Bending radius Single core: 10 x overall diameter
      Multicores: 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

Cable Parameter :

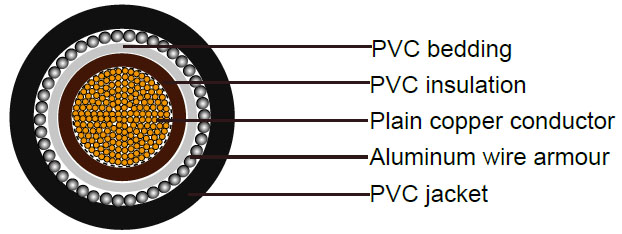

  • Single-core 600/1000V cables with circular stranded copper conductor
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal Bedding thickness Nominal alum wire armor dia. Nominal sheath thickness Approx.overall diameter Approx.cable weight
    mm² No./mm mm mm mm mm mm kg/km
    1x50 19/1.78 1.4 0.8 1.25 1.5 19.1 820
    1x70 19/2.14 1.4 0.8 1.25 1.6 21.1 1070
    1x95 19/2.52 1.6 0.8 1.25 1.6 23.4 1390
    1x120 37/2.03 1.6 1.0 1.6 1.7 26.3 1600
    1x150 37/2.25 1.8 1.0 1.6 1.7 28.3 1900
    1x185 37/2.52 2.0 1.0 1.6 1.8 30.8 2450
    1x240 61/2.25 2.2 1.0 1.6 1.9 34.1 3100
    1x300 61/2.52 2.4 1.0 1.6 1.9 37.0 3760
    1x400 61/2.85 2.6 1.2 2.0 2.1 42.0 4850
    1x500 61/3.20 2.8 1.2 2.0 2.1 45.6 5930
    1x630 61/3.65 2.8 1.2 2.0 2.2 49.7 7390
    1x800 127/2.85 2.8 1.4 2.5 2.4 55.8 9400
    1x1000 127/3.20 3.0 1.4 2.5 2.5 61.0 11430
  •

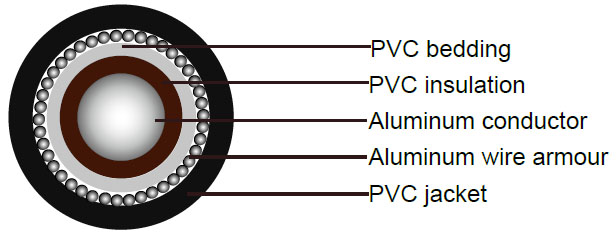

  • Single-core 600/1000V cables with solid aluminum conductor
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Armour strip Nominal sheath thickness Approx.overall diameter Approx.cable weight
    thick-ness width wire armor strip armor
    mm² mm mm mm mm mm mm mm mm kg/km
    1x50 1.4 0.8 1.25 0.6 2.4 1.5 17.8 16.5 530
    1x70 1.4 0.8 1.25 0.6 2.4 1.6 19.6 18.3 650
    1x95 1.6 0.8 1.25 0.6 2.4 1.6 21.7 20.4 810
    1x120 1.6 1 1.6 0.6 2.4 1.7 24.3 22.3 960
    1x150 1.8 1 1.6 0.6 2.4 1.7 26.1 24.1 1115
    1x185 2 1 1.6 1 3.6 1.8 28.3 27.1 1315
    1x240 2.2 1 1.6 1 3.6 1.9 31.2 30 1610
    1x300 2.4 1 1.6 1 3.6 1.9 33.7 32.5 1890
  •

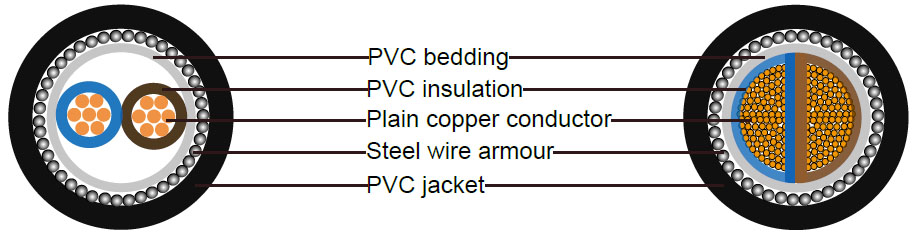

  • Two-core 600/1000V cables with stranded copper conductors
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overalldiameter Approx.cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/mm
    2x1.5 7/0.53 0.6 0.8 0.9 1.4 12.3 - 270
    2x2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 - 350
    2x4 7/0.85 0.8 0.8 0.9 1.4 15.1 - 470
    2x6 7/1.04 0.8 0.8 0.9 1.5 16.5 - 580
    2x10 7/1.35 1.0 0.8 1.25 1.6 20.1 - 840
    2x16 7/1.70 1.0 0.8 1.25 1.6 21.9 21.9 990
    2x25 7/2.14 1.2 1.0 1.6 1.7 26.7 26.3 1480
    2x25* 7/2.14 1.2 1.0 1.6 1.7 23.0 22.6 1480
    2x35 19/1.53 1.2 1.0 1.6 1.8 29.2 28.8 1770
    2x35* 19/1.53 1.2 1.0 1.6 1.8 24.8 24.4 1770
    2x50* 19/1.78 1.4 1.0 1.6 1.9 27.8 27.4 1900
    2x70* 19/2.14 1.4 1.0 1.6 1.9 30.4 30.0 2430
    2x95* 19/2.52 1.6 1.2 2.0 2.1 35.5 34.7 2970
    2x120* 37/2.03 1.6 1.2 2.0 2.2 38.0 37.2 3970
    2x150* 37/2.25 1.8 1.2 2.0 2.3 41.3 40.5 4700
    2x185* 37/2.52 2.0 1.4 2.5 2.4 46.4 45.2 5990
    2x240* 61/2.25 2.2 1.4 2.5 2.5 51.2 50.0 7420
    2x300* 61/2.52 2.4 1.6 2.5 2.7 56.4 54.8 8950
    2x400* 61/2.85 2.6 1.6 2.5 2.9 61.9 60.3 11030
  • *Shaped stranded conductor (class 2)
  •

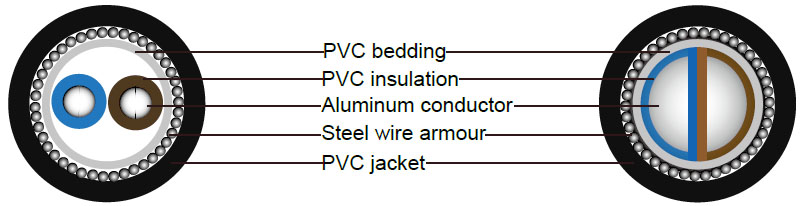

  • Two-core 600/1000V cables with solid aluminum conductors
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Armour strip Nominal sheath thickness Approx. overall diameter Approx. cable weight
    thickness width wire armor strip armor
    extruded bedding taped bedding
    mm² mm mm mm mm mm mm mm mm mm kg/km
    2x16 1 0.8 1.25 0.6 2.4 1.6 20.6 20.6 19.3 795
    2x25 1.2 1 1.6 0.6 2.4 1.7 25 24.6 22.6 1170
    2x25* 1.2 1 1.6 0.6 2.4 1.7 21.3 20.9 18.9 1170
    2x35 1.2 1 1.6 0.6 2.4 1.8 27.2 26.8 24.8 1340
    2x35* 1.2 1 1.6 0.6 2.4 1.8 22.9 22.5 20.5 1340
    2x50* 1.4 1 1.6 0.6 2.4 1.9 25.5 25.1 23.1 1450
    2x70* 1.4 1 1.6 1 3.6 1.9 27.7 27.3 26.1 1560
    2x95* 1.6 1.2 2.0 1 3.6 2.1 32.4 31.6 29.6 2200
  • *Solid shaped conductor (class 1)
  •

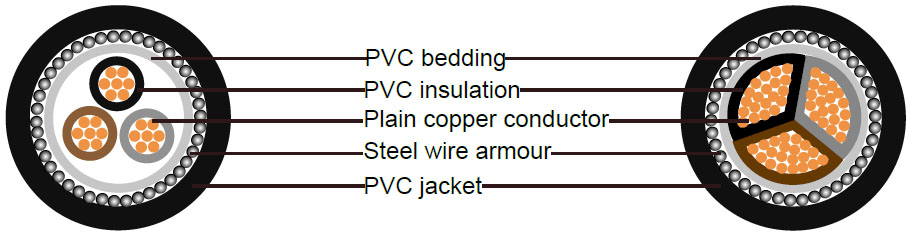

  • Three-core 600/1000V cables with stranded copper conductors
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overalldiameter Approx.cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/mm
    3x1.5 7/0.53 0.6 0.8 0.9 1.4 12.8 - 307
    3x2.5 7/0.67 0.7 0.8 0.9 1.4 14.1 - 387
    3x4 7/0.85 0.8 0.8 0.9 1.4 15.8 - 493
    3x6 7/1.04 0.8 0.8 1.25 1.5 18.0 - 701
    3x10 7/1.35 1.0 0.8 1.25 1.6 21.2 - 967
    3x16 7/1.70 1.0 0.8 1.25 1.6 23.1 23.1 1219
    3x25 7/2.14 1.2 1.0 1.6 1.7 28.2 27.8 1612
    3x25* 7/2.14 1.2 1.0 1.6 1.7 25.0 24.6 1612
    3x35 19/1.53 1.2 1.0 1.6 1.8 30.8 30.4 1992
    3x35* 19/1.53 1.2 1.0 1.6 1.8 27.1 26.7 1992
    3x50* 19/1.78 1.4 1.0 1.6 1.9 30.5 30.1 2534
    3x70* 19/2.14 1.4 1.2 2.0 2.0 35.0 34.2 3518
    3x95* 19/2.52 1.6 1.2 2.0 2.1 39.3 38.5 4510
    3x120* 37/2.03 1.6 1.2 2.0 2.2 42.2 41.4 5375
    3x150* 37/2.25 1.8 1.4 2.5 2.4 47.5 46.3 6810
    3x185* 37/2.52 2.0 1.4 2.5 2.5 51.9 50.7 8190
    3x240* 61/2.25 2.2 1.6 2.5 2.6 57.8 56.2 10280
    3x300* 61/2.52 2.4 1.6 2.5 2.8 63.2 61.6 12430
    3x400* 61/2.85 2.6 1.6 2.5 3.0 69.6 68.0 15400
  • *Shaped stranded conductor (class 2)
  •

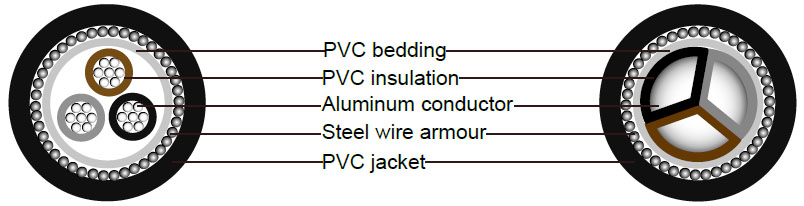

  • Three-core 600/1000V cables with solid aluminum conductors
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Armour strip Nominal sheath thickness Approx. overall diameter Approx. cable weight
    thickness width wire armor strip armor
    extruded bedding taped bedding
    mm² mm mm mm mm mm mm mm mm mm kg/km
    3x16 1 0.8 1.25 0.6 2.4 1.6 21.7 21.7 20.4 925
    3x25 1.2 1 1.6 0.6 2.4 1.7 23.9 23.5 21.5 1150
    3x25* 1.2 1 1.6 0.6 2.4 1.7 25.8 25.4 23.4 1150
    3x35 1.2 1 1.6 0.6 2.4 1.8 26.4 26.0 24.1 1345
    3x35* 1.2 1 1.6 0.6 2.4 1.8 28.7 28.3 27.3 1345
    3x50* 1.4 1 1.6 1 3.6 1.9 28.9 28.5 26.4 1610
    3x70* 1.4 1.2 2 1 3.6 2 33 32.2 30.2 2220
    3x95* 1.6 1.2 2 1.4 4.8 2.1 37.1 36.3 35.1 2745
    3x120* 1.6 1.2 2 1.4 4.8 2.2 39.7 38.9 37.7 3145
    3x150* 1.8 1.4 2.5 1.4 4.8 2.4 44.7 43.5 41.3 4020
    3x185* 2 1.4 2.5 1.4 4.8 2.5 48.7 47.5 45.3 4730
    3x240* 2.2 1.6 2.5 1.8 6.4 2.6 54.2 52.6 51.2 5820
    3x300* 2.4 1.6 2.5 1.8 6.4 2.8 59.2 57.6 56.2 6850
  • *Solid shaped conductor (class 1)
  •

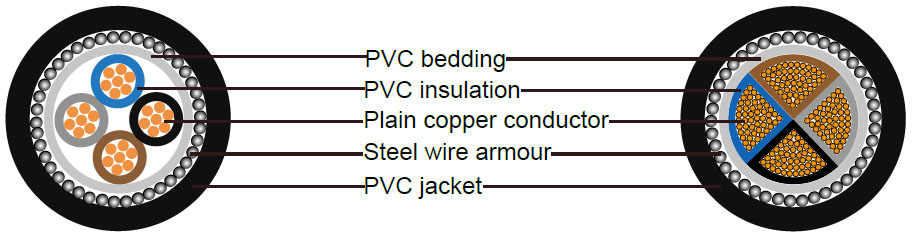

  • Four-core 600/1000V cables with stranded copper conductors
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overalldiameter Approx.cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/mm
    4x1.5 7/0.53 0.6 0.8 0.9 1.4 13.5 - 330
    4x2.5 7/0.67 0.7 0.8 0.9 1.4 15.0 - 430
    4x4 7/0.85 0.8 0.8 1.25 1.5 17.8 - 640
    4x6 7/1.04 0.8 0.8 1.25 1.5 19.2 - 770
    4x10 7/1.35 1.0 0.8 1.25 1.6 22.8 - 1070
    4x16 7/1.70 1.0 1.0 1.6 1.7 26.3 25.9 1550
    4x25 7/2.14 1.2 1.0 1.6 1.8 30.7 30.3 2005
    4x25* 7/2.14 1.2 1.0 1.6 1.8 27.8 27.4 2005
    4x35 19/1.53 1.2 1.0 1.6 1.9 33.7 33.3 2490
    4x35* 19/1.53 1.2 1.0 1.6 1.9 30.3 29.9 2490
    4x50* 19/1.78 1.4 1.2 2.0 2.0 35.4 34.6 3475
    4x70* 19/2.14 1.4 1.2 2.0 2.1 39.2 38.4 4480
    4x95* 19/2.52 1.6 1.2 2.0 2.2 43.3 43.5 5710
    4x120* 37/2.03 1.6 1.4 2.5 2.4 49.3 48.1 7350
    4x150* 37/2.25 1.8 1.4 2.5 2.5 53.6 52.4 8720
    4x185* 37/2.52 2.0 1.6 2.5 2.6 59.0 57.4 10540
    4x240* 61/2.25 2.2 1.6 2.5 2.8 65.7 64.1 13290
    4x300* 61/2.52 2.4 1.6 2.5 3.0 72.0 70.4 16050
    4x400* 61/2.85 2.6 1.8 3.15 3.3 81.3 79.3 20950
  • *Shaped stranded conductor (class 2)
  •
  • Four-core 600/1000V cables with solid aluminum conductors
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Armour strip Nominal sheath thickness Approx. overall diameter Approx. cable weight
    thickness width wire armor strip armor
    extruded bedding taped bedding
    mm² mm mm mm mm mm mm mm mm mm kg/km
    4x16 1 1 1.6 0.6 2.4 1.7 24.7 24.3 22.3 1125
    4x25 1.2 1 1.6 0.6 2.4 1.8 28.7 28.3 26.3 1390
    4x25* 1.2 1 1.6 0.6 2.4 1.8 26.3 25.9 23.9 1390
    4x35 1.2 1 1.6 0.6 2.4 1.9 31.3 30.9 28.9 1625
    4x35* 1.2 1 1.6 0.6 2.4 1.9 28.6 28.2 26.2 1625
    4x50* 1.4 1.2 2 1 3.6 2 33.3 32..5 30.5 2240
    4x70* 1.4 1.2 2 1 3.6 2.1 36.8 36.0 34 2750
    4x95* 1.6 1.2 2 1.4 4.8 2.2 41.5 40.7 39.5 3360
    4x120* 1.6 1.4 2.5 1.4 4.8 2.4 46.1 44.9 42.7 4380
    4x150* 1.8 1.4 2.5 1.4 4.8 2.5 50.1 48.9 46.7 5000
    4x185* 2 1.6 2.5 1.8 6.4 2.6 55.1 53.5 52.1 5960
    4x240* 2.2 1.6 2.5 1.8 6.4 2.8 61.2 59.6 58.2 7340
    4x300* 2.4 1.6 2.5 1.8 6.4 3 67 65.4 64 8610
  • *Solid shaped conductor (class 1)
  •

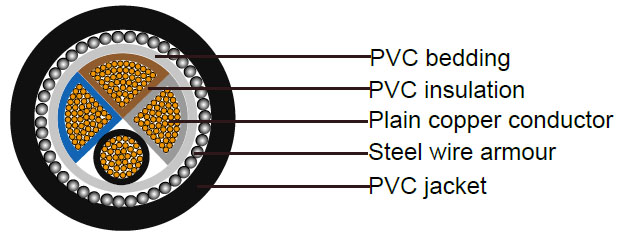

  • 3+1 Core (4 Core with reduced neutral) 600/1000V cables with stranded copper conductors
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. Overall Diameter Approx. cable weight
    Phase Neutral Phase Neutral
    mm² mm² mm mm mm mm mm mm kg/mm
    3x10 3x6 1.0 0.8 1.0 1.25 1.8 23.4 1370
    3x16 3x10 1.0 1.0 1.0 1.25 1.8 25.0 1620
    3x25* 3x16 1.2 1.0 1.0 1.6 1.8 27.8 1900
    3x35* 3x16 1.2 1.0 1.0 1.6 1.8 29.5 2300
    3x50* 3x25 1.4 1.2 1.0 1.6 1.9 33.1 3050
    3x70* 3x35 1.4 1.2 1.2 2.0 2.0 38.0 4130
    3x95* 3x50 1.6 1.4 1.2 2.0 2.2 43.7 5370
    3x120* 3x70 1.6 1.4 1.4 2.5 2.3 49.0 6840
    3x150* 3x70 1.8 1.4 1.4 2.5 2.4 52.0 8040
    3x185* 3x95 2.0 1.6 1.4 2.5 2.5 57.2 9760
    3x240* 3x120 2.2 1.6 1.6 2.5 2.7 63.7 12210
    3x300* 3x150 2.4 1.8 1.6 2.5 2.9 69.8 14840
    3x300* 3x185 2.4 2.0 1.6 2.5 2.9 71.8 17730
    3x400* 3x185 2.6 2.0 1.8 3.15 3.1 78.6 19090
  • *Shaped stranded conductor (class 2)
  •

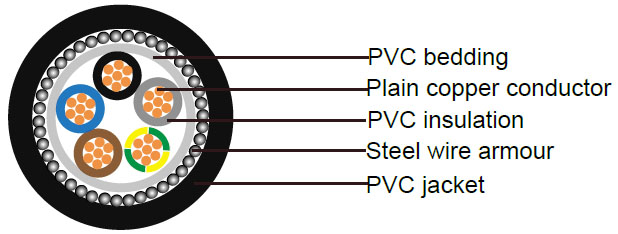

  • Five-core 600/1000V cables with stranded copper conductors
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overall diameter Approx. cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/mm
    5x1.5 7/0.53 0.6 0.8 0.9 1.4 14.3 - 430
    5x2.5 7/0.67 0.7 0.8 0.9 1.5 16.3 - 545
    5x4 7/0.85 0.8 0.8 1.25 1.5 19.0 - 790
    5x6 7/1.04 0.8 0.8 1.25 1.6 20.9 - 880
    5x10 7/1.35 1.0 1.0 1.6 1.7 25.8 - 1150
    5x16 7/1.70 1.0 1.0 1.6 1.7 28.4 28.0 1670
    5x25 7/2.14 1.2 1.0 1.6 1.9 33.5 33.1 2250
    5x35 19/1.53 1.2 1.0 1.6 1.9 36.6 36.2 2670
    5x50 19/1.78 1.4 1.2 2.0 2.1 43.0 42.2 3590
    5x70 19/2.14 1.4 1.2 2.0 2.2 48.1 47.3 4610
  •

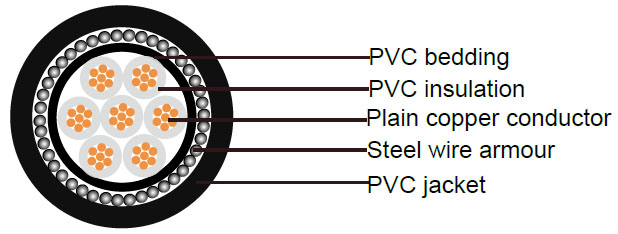

  • Multi-core 600/1000V cables with stranded copper conductors
  • No. of Cores Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Nominal sheath thickness Approx. overall diameter Approx.cable weight
    mm² No./mm mm mm mm mm mm kg/mm
    7 1.5 7/0.53 0.6 0.8 0.9 1.4 15.2 500
    10 1.5 7/0.53 0.6 0.8 1.25 1.5 18.6 780
    12 1.5 7/0.53 0.6 0.8 1.25 1.5 19.4 830
    19 1.5 7/0.53 0.6 0.8 1.25 1.6 22.2 1090
    27 1.5 7/0.53 0.6 1.0 1.6 1.7 26.7 1600
    37 1.5 7/0.53 0.6 1.0 1.6 1.8 29.2 1940
    48 1.5 7/0.53 0.6 1.0 1.6 1.9 32.9 2360
    7 2.5 7/0.67 0.7 0.8 1.25 1.5 18.0 750
    10 2.5 7/0.67 0.7 0.8 1.25 1.6 21.8 1000
    12 2.5 7/0.67 0.7 0.8 1.25 1.6 22.4 1080
    19 2.5 7/0.67 0.7 1.0 1.6 1.7 26.6 1640
    27 2.5 7/0.67 0.7 1.0 1.6 1.8 30.7 2110
    37 2.5 7/0.67 0.7 1.0 1.6 1.9 34.0 2600
    48 2.5 7/0.67 0.7 1.2 2.0 2.1 39.5 3520
    7 4 7/0.85 0.8 0.8 1.25 1.6 20.5 970
    10 4 7/0.85 0.8 1.0 1.6 1.7 26.1 1500
    12 4 7/0.85 0.8 1.0 1.6 1.7 26.8 1630
    19 4 7/0.85 0.8 1.0 1.6 1.8 30.5 2170
    27 4 7/0.85 0.8 1.2 2.0 2.0 37.1 3170
    37 4 7/0.85 0.8 1.2 2.0 2.1 40.8 3910
    48 4 7/0.85 0.8 1.2 2.0 2.2 46.0 4790
