Interbus Loop Cable

Applications

The two-conductor Interbus-Loop cable is to be applied as a data transmission cable as well as for the supply of sensors. The three-conductor Interbus-Loop cables is applied for supply of actuators. These cables are also suitable for Interbus-Loop 2.

Construction

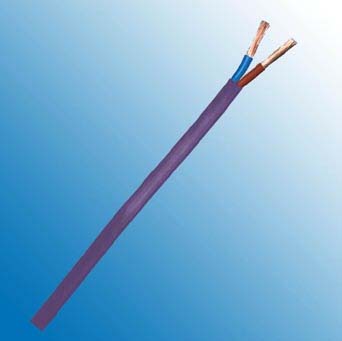

  Interbus Loop Cable
Type 2 pairs/ 3 pairs interbus Loop cable
Inner Conductor Bare copper conductors 1.5mm^2
Conductor Insulation PE
Stranding Element Specially adjusted layering with netting tape and one additional nonwoven tape over the outer layer
Core Wrapping -
Shielding -
Drain Wire: -
Outer Jacket Material PVC/ PUR/ FRNC
Conductor identification Blue, red
Sheath colour Purple

Electrical Data

Characteristic Impedance@250MHz - 10MHz 75 Ω ± 15 Ω
Radiation Resistance 5 x 107 cJ/kg
Weather Resistance Very good
Working Voltage Max: 350V
Test Voltage 1KV

Technical Data

Weight: approximately 78.0 kg/km approximately 94.0 kg/km
Min. Bending Radius 15 x OD mm
Operating Temp.Range, min. - 40 °C(flexing)/ - 50 °C(static)
Operating Temp.Range, max. +90 °C
