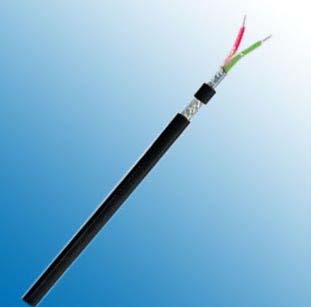

Profibus L2 Outdoor + Industry

Applications

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for outdoor laying (PE jacket) and industry laying (PUR jacket).

Construction

  Profibus L2 Outdoor + Industry
Type/Area of Application Fixed Installation, Outdoor /Heavy Duty
Cable Construction 1x2x0.64 mm
Inner Conductor Diameter Copper, bare (AWG 22/1)
Conductor Insulation Foam-skin-PE
Conductor Colors Red, green
Stranding Element 2 conductors + 2 fillers stranded together
Shielding Polyester foil, aluminum lined
Total Shielding Cu braid, tinned
Outer Jacket Material PE/PUR
Outer Diameter 8.0 mm ± 0.4 mm
Outer Jacket Color Black

Electrical Data

Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω
Conductor Resistance 55.0 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min.
Mutual Capacitance@1 KHz 30.0 nF/km nom.
Working Voltage Max: 250V
Test Voltage 1.5 KV
Attenuation 9.6 kHz < 2.5 dB/km
  38.4 kHz < 4.0 dB/km
  4.0 MHz < 22.0 dB/km
  16.0 MHz < 42.0 dB/km

Technical Data

Weight approximately 69.0 kg/km
Min. Bending Radius (Laying) 15 x OD mm
Operating Temp.Range, min. -40°C
Operating Temp.Range, max. +70°C
