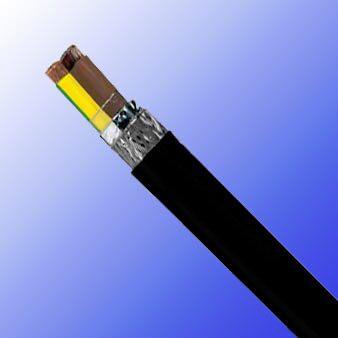

2YSLCY-JB/2YSLCYK-JB

Applications :

  • These cables are double shielded, large gauge size, PVC motor supply cables Polyethylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences.For medium mechanical stresses found indoors in dry, moist and wet areas. For 2YSLCYK-JB ,the black UVresistant jacket also allows for outdoor use and for direct burial applications.

Standard and Approval :

  • VDE 0250 & 0281



    EMC to VDE-0875 part-11



    ROHS compliant

    EMC to EN 55011



    CE Low Voltage Directive 73/23/EEC and 93/68/EEC

Cable construction :

  • - Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5
  • - Polyethylene(PE) insulation
  • - Colours according to HD 308 S2(VDE 0293- 308)
  • - Special aluminum foil screening
  • - Tinned copper braiding, coverage approx. 80%
  • - For 2YSLCY special transparent PVC sheath made of PVC compound YM2 acc.VDE 0207 -5,leadfree,flame retardant & self-extinguishing
  • - For 2YSLCYK black PVC sheath made of cold-flexible PVC compound DMV5 acc.VDE 0276-603,leadfree,UV resistant,outdoor and direct burial use,flame retardant & self-extinguishing,IEC 60332.1 EEU directives cables conforms to EEC 79/29 directive ( Low Voltage Directive)

Technical Characteristics :

  • - Working voltage: 600/1000 volts
  • - Test voltage: 4000 volts
  • - Minimum bending radius: 20 x Ø
  • - Flexing temperature: -5º C to +70º C
  • - Fixed installation temperature: - 40º C to +70º C
  • - Flame retardant: IEC 60332.1
  • - Insulation resistance: >20 GΩ x km
  • - Coupling resistance max. 250 Ω/km
  • - Radiation resistance up to 80 x106 cJ/kg (up to 80 Mrad)
  • - Mutual capacitance: core/core 70 to 250 nF/km,core/braiding 110 to 410 nF/km

Cable Parameter :

  • AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Overall Diameter mm Mutual capacitance core/core approx. nF/km Mutual capacitance core/screen approx. nF/km Copper Weight kg / km Cable Weight kg / km
    16(30/30) 4 G 1.5 11.6 70 110 95 230
    14(50/30) 4 G 2.5 13.1 80 130 150.0 300
    12(56/28) 4 G 4 14.6 90 150 235.0 485
    10(84/28) 4 G 6 16.0 110 170 320.0 630
    8(80/26) 4 G 10 19.5 120 190 533.0 860
    6(128/26) 4 G 16 22.0 130 220 789.0 1,290
    4(200/26) 4 G 25 26.2 145 230 1,236.0 1,860
    2(280/26) 4 G 35 29.4 150 260 1,662.0 2,610
    1(400/26) 4 G 50 37.5 175 290 2,345.0 2,950
    2/0(356/24) 4 G 70 40.0 180 300 3,196.0 3,950
    3/0(485/24) 4 G 95 46.4 195 320 4,316.0 5,300
    4/0(614/24) 4 G 120 53.1 215 340 5,435.0 6,600
    300 MCM (765/24) 4 G 150 57.2 230 360 6,394.0 7,043
    350 MCM (944/24) 4 G 185 61.1 240 380 7639 8384
    500 MCM 4 G 240 67.3 250 410 10013 11611
