9YSLCY-JB

Applications :

  • These cables are double shielded, large gauge size,UL/CSA/CE approved PVC motor supply cable. Polypropylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences. For medium mechanical stresses found indoors in dry, moist and wet areas.

Standard and Approval :

  • UL AWM 2570 or 20886, VW-1



    CSA AWM I/II A/B, FT-1



    EMC to EN 55011; EMC to VDE-0875 part-11



    ROHS compliant

    UL/CSA rated 1kV 80 Deg C.



    VDE 0250, VDE 0207, VDE 0276



    CE Low Voltage Directive 73/23/EEC and 93/68/EEC

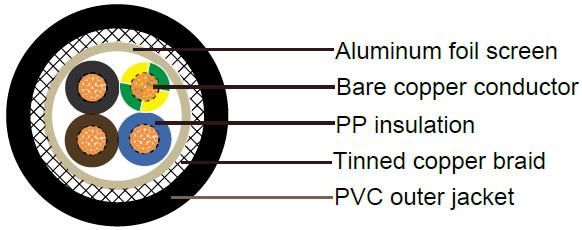

Cable construction :

  • - Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5
  • - Polypropylene (PP) insulation
  • - Colours according to HD 308 S2(VDE 0293- 308)
  • - Special aluminum foil screening
  • - Tinned copper braiding, coverage approx. 85%
  • - Transparent PVC sheath made of PVC compound YM2 acc. VDE 0207 -5, leadfree, flame retardant & selfextinguishing

Technical Characteristics :

  • - Working voltage: IEC 600/1000V / UL & CSA 1000V
  • - Test voltage: 4000 volts
  • - Minimum bending radius: 15 x Ø
  • - Flexing temperature: -5º C to +80º C
  • - Fixed installation temperature: - 40º C to +80º C
  • - Flame retardant: IEC 60332.1 VW-1
  • - Insulation resistance: >20 GΩ x km

Cable Parameter :

  • AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Overall Diameter mm Copper Weight
    kg / km    		 Cable Weight
    kg / km
    16(30/30) 4 G 1.5 10.5 87 230
    14(50/30) 4 G 2.5 11.8 133 300
    12(56/28) 4 G 4 13.3 213 485
    10(84/28) 4 G 6 14.9 298 630
    8(80/26) 4 G 10 17.7 460 860
    6(128/26) 4 G 16 21.5 707 1290
    4(200/26) 4 G 25 26.3 1100 1860
    2(280/26) 4 G 35 29.7 1542 2610
    1(400/26) 4 G 50 34.1 2206 2950
    2/0(356/24) 4 G 95 40.9 3002 3950
    3/0(485/24) 4 G 95 45.4 4004 5300
    4/0(614/24) 4 G 120 49.8 5108 6600
    300 MCM (765/24) 4 G 150 56.1 6225 7043
    350 MCM (944/24) 4 G 185 61.4 7568 8384
    500 MCM (1225/24) 4 G 240 67.9 9940 12150
