9YSLCYK-JB+3

Applications :

  • These cables are double shielded, large gauge size, UL/CSA/CE approved PVC motor supply cable. Polypropylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences. For medium mechanical stresses found indoors in dry, moist and wet areas. The black UV-resistant jacket allows for outdoor use and for direct burial applications.

Standard and Approval :

  • UL AWM 2570 or 20886, VW-1



    CSA AWM I/II A/B, FT-1



    EMC to EN 55011; EMC to VDE-0875 part-11



    ROHS compliant

    UL/CSA rated 1kV 80 Deg C.



    VDE 0250, VDE 0207, VDE 0276



    CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  •

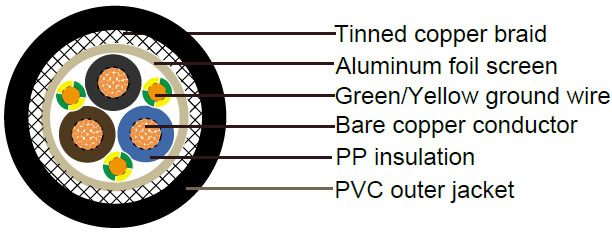

Cable construction :

  • - Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5
  • - Polypropylene (PP) insulation
  • - Colours according to HD 308 S2(VDE 0293- 308)
  • - Special aluminum foil screening
  • - Three symmetrical green/yellow ground wires
  • - Tinned copper braiding, coverage approx. 85%
  • - Black PVC sheath made of cold-flexible PVC compound DMV5 acc. VDE 0276-603, leadfree,UV resistant,outdoor and direct burial use, flame retardant & self-extinguishing, IEC 60332.1 EEU directives cables conforms to EEC 79/29 directive ( Low Voltage Directive)

Technical Characteristics :

  • - Working voltage: IEC 600/1000V / UL & CSA 1000V
  • - Test voltage: 4000 volts
  • - Minimum bending radius: 15 x Ø
  • - Flexing temperature: -5º C to +80º C
  • - Fixed installation temperature: - 40º C to +80º C
  • - Flame retardant: IEC 60332.1 VW-1
  • - Insulation resistance: >20 GΩ x km

Cable Parameter :

  • Conductor
    AWG    		 Ground Wire
    AWG    		 No. of Cores x Nominal Cross-Section mm2 Nominal Overall Diameter mm Copper Weight
    kg / km    		 Cable Weight
    kg / km
    16(30/30) 24 3 X 1.5 + 3 G 0.25 11.4 88 140
    14(50/30) 22 3 X 2.5 + 3 G 0.5 12.9 130 220
    12(56/28) 20 3 X 4 + 3 G 0.75 13.6 224 323
    10(84/28) 18 3 X 6 + 3 G 1.0 15.2 276 420
    8(80/26) 16 3 X 10 + 3 G 1.5 17.4 511 615
    6(128/26) 14 3 X 16 + 3 G 2.5 20 751 819
    4(200/26) 12 3 X 25 + 3 G 4 24.3 1204 1325
    2(280/26) 10 3 X 35 + 3 G 6 27.5 1535 1718
    1(400/26) 8 3 X 50 + 3 G 10 31.1 2156 2399
    2/0(356/24) 8 3 X 70 + 3 G 10 37.1 2980 3056
    3/0(485/24) 6 3 X 95 + 3 G 16 40 3953 4162
    4/0(614/24) 6 3 X 120 + 3 G 16 42.6 4836 5074
    300 MCM (765/24) 4 3 X 150 + 3 G 25 50 5412 6128
    350 MCM (944/24) 2 3 X 185 + 3 G 35 55.6 7077 7820
